1B5V94 BRN

Name: 1B5V94 BRN
Brand: Regal Rexnord
SKU: 1B5V94 BRN
Price: 155.27 USD
Availability: OutOfStock

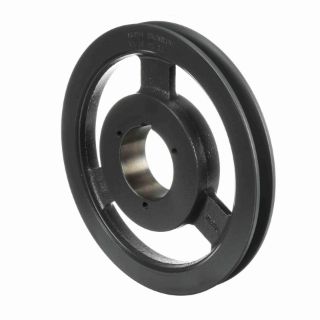

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

3693777

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$155.27 / EA

Description

Brand Name

Browning®

Type

Arm Type 2

Description

Browning® Classical Gripbelt® Single Groove Sheave, Arm Type 2, Series: B5V®, Split Taper Bore, 1/2 to 2-7/16 in Bore Dia, 9.68 in Outside Dia, 9.2 in (A)/9.7 in (B)/9-1/2 in (BV), 1 in Face Width, 3-11/16 in Hub Dia, 63/64 in Hub Projection, B Bushing, 2-5/16 in Overall Length, For Use With: 4L/A, 5L/B and 5V Cross Section Belt, Cast Iron

Application

Agitators, Blowers and Exhausters, Belt Conveyors, Generators, Laundry Machinery, Machine Tools, Printing Machinery, Brick Machinery, Bucket Elevators, Exciters, Piston Compressors, Hammer Mils, Paper Mill Beaters, Piston Pumps, Positive Displacement Blowers and Rotary Pumps and Pulverizer Industries

Features

5V performance B-groove economy
40% more hp per dollar of cost than traditional 5V sheaves (40% cost reduction)
Reduced need for duplicate inventory of B and 5V sheaves
Split Taper® bushings keyed to shaft and hub
External key provides positive drive with no torque on the cap screws
Highest torque carrying capacity in the Browning® bushing product line
Double split barrel assures true concentricity
Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material

Specifications

Bore Diameter:	1/2 to 2-7/16 in
Bore Type:	Split Taper
Bushing Type:	B
Country of Origin:	MX
Face Width:	1 in
Hub Diameter:	3-11/16 in
Hub Projection:	63/64 in
Material:	Cast Iron
Outside Diameter:	9.68 in
Overall Length:	2-5/16 in
Pitch Diameter:	9.2 in (A)/9.7 in (B)/9-1/2 in (BV)
Series:	B5V®
Suitable For Use With:	4L/A, 5L/B and 5V Cross Section Belt
