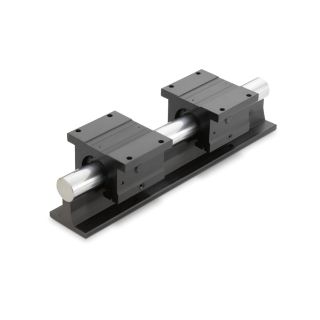

Actual Product May Vary From Image

1CA16FA0L36 THO

Name: 1CA16FA0L36 THO
Brand: Thomson Industries
SKU: 1CA16FA0L36 THO
Availability: OutOfStock

Thomson® RoundRail™ 1CA16FA0L36 Continuously Supported Standard Profile Linear Guide, 1 in Dia Nominal, 36 in L Linear Guide, 30.74 in L Stroke

Manufacturer: Thomson Industries

Manufacturer part number: 1CA16FA0L36

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

Continuously Supported Standard Profile

Description

The 1CA continuous support (Industry Standard Inch) RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life and 6X the load capacity of conventional bearings. With the RoundRail™ advantage, the inherent self-aligning-in-all-directions design of the Super Smart Bushing® bearings, allows for ultra smooth travel when mounted to wider tolerance prepared surfaces.

Thomson® RoundRail™ Linear Guide, Continuously Supported Standard Profile, Series: 1CA, 1 in Diameter Nominal, 36 in Linear Guide Length, 30.74 in Stroke Length, Single Open Pillow Block Bearing/Bushing, SRA End Support, 3000 lb Dynamic Load, 10 fps Maximum, 0.28 in Mounting Hole, 185 deg F, Aluminum Alloy Rail, Black Anodized, 3.25 in W x 2.937 in H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

High speed, smooth operation and easy to install
Increased life within the same envelope
RoundRail™ linear guides feature the new patented Super Smart Ball Bushing® bearings for up to 216X the life or 6X the load capacity of conventional bearings
Cost savings
Superior performance, continuously supported for maximum (down and side) load applications without concerns for shaft deflection
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
Unlimited travel lengths without concerns for machined reference edges or butt joint alignment
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
Used in continuously supported applications when rigidity is required
Fully supported, highest performance
No table top

Includes

(2) Super Smart Ball BushingÂ® Single Open Pillow Blocks, (1) SRA Series Continuous Shaft Support and (1) 60 CaseÂ® LinearRaceÂ® Round Shaft Support Rail Assembly

Specifications

Bearing/Bushing Type:	Single Open Pillow Block
Country of Origin:	MX
Dimensions:	3.25 in W x 2.937 in H
End Support Type:	SRA
Finish:	Black Anodized
Linear Guide Length:	36 in
Load Capacity:	3000 lb Dynamic
Maximum Speed:	10 fps
Mounting Hole Size:	0.28 in
Nominal Diameter:	1 in
Rail Material:	Aluminum Alloy
Series:	1CA
Stroke Length:	30.74 in
Temperature Rating:	185 deg F
