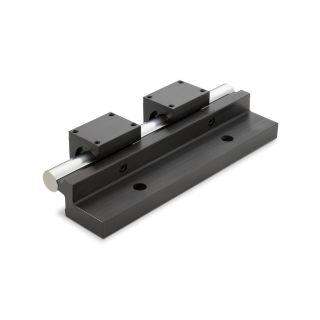

Actual Product May Vary From Image

1DA16J00L24 THO

Name: 1DA16J00L24 THO
Brand: Thomson Industries
SKU: 1DA16J00L24 THO
Availability: OutOfStock

Thomson® RoundRail™ 1DA16J00L24 Continuously Supported Linear Guide, 1 in Dia Nominal, 24 in L Linear Guide, 18.74 in L Stroke

Manufacturer: Thomson Industries

Manufacturer part number: 1DA16J00L24

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

Continuously Supported

Description

The 1DA side mount (Industry Standard Inch) RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life or 6X the load capacity of conventional bearings. The RoundRail™ advantage, the inherent self-aligning-in-all-directions design, allows for ultra smooth travel when mounted on wider tolerance prepared surfaces.

Thomson® RoundRail™ Linear Guide, Continuously Supported, Series: 1DA, 1 in Diameter Nominal, 24 in Linear Guide Length, 18.74 in Stroke Length, Single Modified Open Pillow Block Bearing/Bushing, SSRA End Support, 2700 N Dynamic Load, 10 fps Maximum, 0.41 in Mounting Hole, 185 deg F, Aluminum Rail, Black Anodized, 4.49 in W x 2.562 in H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Low profile, high loads in all directions and easy to install
Increased life within the same envelope
RoundRail™ linear guides feature the new patented Super Smart Ball Bushing® bearings for up to 216X the life or 6X the load capacity of conventional bearings
Cost savings
Superior performance, continuously supported for maximum (down and side) load applications without concerns for shaft deflection
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
Unlimited travel lengths without concerns for machined reference edges or butt joint alignment
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
Slide mounted geometry for increased mounting flexibility
Corrosion resistant versions for maximum performance in harsh environments
Continuously supported design increases rigidity and provides for unlimited linear guide travel lengths
Versatile side support rail assembly geometry for optimizing mounting ability
Side mounted design provides an increase in pull-off load capacity
No table top

Includes

(2) Super Smart Ball BushingÂ® Single Modified Open Pillow Blocks, (1) SSRA Series Side Mounted Continuous Shaft Support and (1) 60 CaseÂ® LinearRaceÂ® Round Shaft Side Mounted Support Rail Assembly

Specifications

Bearing/Bushing Type:	Single Modified Open Pillow Block
Country of Origin:	MX
Dimensions:	4.49 in W x 2.562 in H
End Support Type:	SSRA
Finish:	Black Anodized
Linear Guide Length:	24 in
Load Capacity:	2700 N Dynamic
Maximum Speed:	10 fps
Mounting Hole Size:	0.41 in
Nominal Diameter:	1 in
Rail Material:	Aluminum
Series:	1DA
Stroke Length:	18.74 in
Temperature Rating:	185 deg F
