1E 25.46/1 H 143TC 1.500 HUB

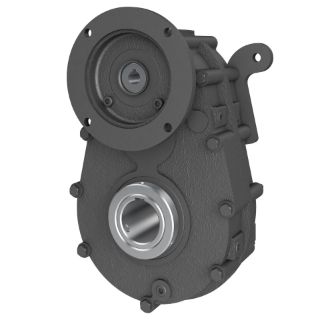

Hub City® 20-2006955 1 Series Type H Double Reduction Parallel Shaft Gear Drive, C-Face Quill Input, Hollow Bore Output, 5.7 hp, 25.46:1 Gear, 69 rpm Maximum Output, 5161 in-lb Torque Rating
Manufacturer part number: 20-2006955
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Type H Double Reduction

Description

Parallel shaft gearing utilizes helical or spur gearing with shafts that are parallel and offset. Input connection can be facilitated using couplings, belt drives or C-face quill. Various output configurations are available. These gearboxes are used individually and also in combination with other gearboxes to easily fine tune the ratio to the application requirement.
Hub City® Parallel Shaft Gear Drive, Type H Double Reduction, Series: 1 Series, 25.46:1 Gear Ratio, 5.7 hp, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, Oil Lubrication, Shaft Mounting, Cast Iron, 9-1/16 in L x 13-17/32 in H Dimensions

Features

  • Rugged cast iron housing
  • High strength gearing
  • Alloy shafting
  • Three input modes for integrating with hydraulic or electric motors or externally coupled drive sources
  • Heavy duty industrial seals

Specifications

Dimensions:9-1/16 in L x 13-17/32 in H
Gear Ratio:25.46:1
Horsepower:5.7 hp
Input Size:7/8 in Dia
Input Type:C-Face Quill
Keyway Size:3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:Oil
Material:Cast Iron
Mounting Type:Shaft
Output Type:Hollow Bore
Series:1 Series
