1H3V50 BRN

Name: 1H3V50 BRN
Brand: Regal Rexnord
SKU: 1H3V50 BRN
Price: 127.90 USD
Availability: OutOfStock

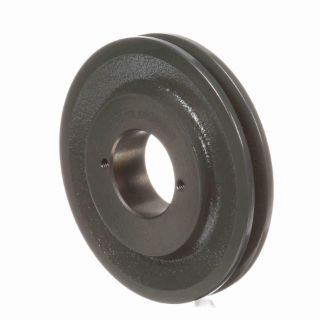

Browning® Gripbelt® 1060169 Type H3 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 5 in OD, 4.95 in Dia Pitch, 11/16 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1060169

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$127.90

Qty:

Product Details

Brand Name

Browning®

Type

Type H3

Description

Browning® Gripbelt® Single Groove Sheave, Type H3, Split Taper Bore, 3/8 to 1-1/2 in Bore, 5 in OD, 4.95 in Pitch Diameter, 11/16 in Face Width, 2-1/2 in Diameter Hub, 21/32 in Hub Projection, H Bushing, 1-1/2 in Overall Length, For Use With: 3V-Cross Section V-Belts, Cast Iron

Application

Agitators, Blowers and Exhausters, Belt Conveyors, Generators, Laundry Machinery, Machine Tools, Printing Machinery, Brick Machinery, Bucket Elevators, Exciters, Piston Compressors, Hammer Mils, Paper Mill Beaters, Piston Pumps, Positive Displacement Blowers and Rotary Pumps and Pulverizer Industries

Features

Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
All sheaves are statically balanced to assure smooth, vibration free performance
Easy-on/easy-off
Split Taper® bushings keyed to shaft and hub
External key provides positive drive with no torque on the cap screws
Highest torque carrying capacity in the Browning® bushing product line
Double split barrel assures true concentricity

Specifications

Bore Diameter:	3/8 to 1-1/2 in
Bore Type:	Split Taper
Bushing Type:	H
Country of Origin:	MX
Face Width:	11/16 in
Hub Diameter:	2-1/2 in
Hub Projection:	21/32 in
Material:	Cast Iron
Outside Diameter:	5 in
Overall Length:	1-1/2 in
Pitch Diameter:	4.95 in
Suitable For Use With:	3V-Cross Section V-Belts
