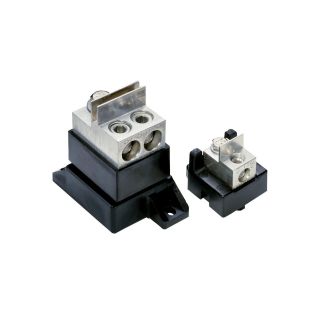

Actual Product May Vary From Image

1LFS102 LIT

Name: 1LFS102 LIT
Brand: Littelfuse
SKU: 1LFS102 LIT
Price: 265.68 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® 1LFS102 High Speed Modular Non-Indicating Semiconductor Fuse Block, 600 VAC, 400 A, 6 AWG to 250 kcmil Al/Cu Wire

Manufacturer: Littelfuse

Manufacturer part number: 1LFS102

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$265.68

Qty:

Product Details

Brand Name

Littelfuse®

Type

High Speed Modular Non-Indicating

Description

Littelfuse® modular style semiconductor fuse blocks accommodate a wide range of semiconductor fuses. Blocks are provided in pairs with fuse mounting hardware.

Littelfuse® POWR-GARD® Semiconductor Fuse Block, High Speed Modular Non-Indicating, Series: 1LFS, 600 VAC, 400 A, Box Lug Connection, 6 AWG to 250 kcmil Al/Cu Wire, Bolted-In Mounting, 150 deg C, For Use With: L15S, L25S, L50S and L60S Series Fuse, Phenolic, 3.8 in L x 2.25 in H Dimensions

Application

Industrial Applications

Standards

UL File No. E14721 Recognized | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Modular design reduces inventory requirements
Sold in pairs for convenience
Constructed of molded phenolic (with plated steel studs)
Current limiting

Specifications

Amperage Rating:	400 A
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	3.8 in L x 2.25 in H
Material:	Phenolic
Mounting Type:	Bolted-In
Series:	1LFS
Suitable For Use With:	L15S, L25S, L50S and L60S Series Fuse
Temperature Rating:	150 deg C
Voltage Rating:	600 VAC
Wire Size:	6 AWG to 250 kcmil Al/Cu
