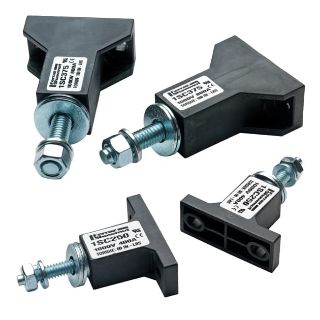

Actual Product May Vary From Image

1MSC108 FER

Name: 1MSC108 FER
Brand: Mersen
SKU: 1MSC108 FER
Price: 213.43 USD
Availability: OutOfStock

Mersen 1MSC108 Modular Semiconductor Fuse Block, 600 VAC/VDC, 400 A, 6 AWG to 250 kcmil Wire, 1 Pole

Manufacturer: Mersen

Manufacturer part number: 1MSC108

Availability: Expected Leadtime 35 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$213.43

Qty:

Product Details

Brand Name

Mersen

Type

Modular

Description

MERSEN 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse.

Mersen Semiconductor Fuse Block, Modular, Series: 1MSC, 600 VAC/VDC, 400 A, 1 Pole, 1 ph, Box Connection, 6 AWG to 250 kcmil Wire, Threaded Mounting, 150 deg C, Phenolic, 3.8 in H x 2.25 in W x 3.58 in D Dimensions

Standards

RoHS Compliant | UL 4248-1 Guide IZLT2 File No. E171957, E35113 Recognized

Features

Modular two-piece design
Compact footprint
Heat dissipating integral box connector versions
Accommodates a large range of semiconductor fuses
Rugged phenolic insulators

Includes

1/4 in Bolt, 1/4 in Washer

Specifications

Amperage Rating:	400 A
Connection Type:	Box
Country of Origin:	MX
Dimensions:	3.8 in H x 2.25 in W x 3.58 in D
Material:	Phenolic
Mounting Type:	Threaded
Number of Phases:	1
Number of Poles:	1
Series:	1MSC
Temperature Rating:	150 deg C
Voltage Rating:	600 VAC/VDC
Wire Size:	6 AWG to 250 kcmil
