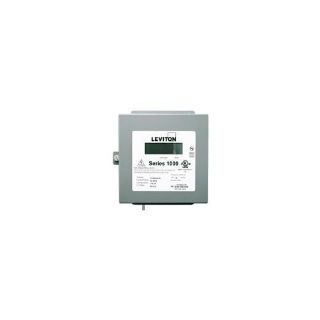

Actual Product May Vary From Image

1N240-41 LEV

Name: 1N240-41 LEV
Brand: Leviton Manufacturing
SKU: 1N240-41 LEV
Availability: OutOfStock

Leviton® VerifEye™ 1N240-41 1000 2-Phase 3-Wire 2-Element Surface Mount Meter, 120/208/240 VAC, 400 A, LCD Display, Isolated Pulse Output Communication

Manufacturer: Leviton Manufacturing

Manufacturer part number: 1N240-41

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

2-Phase 3-Wire 2-Element Surface Mount

Description

Leviton® VerifEye™ series 1000 line of revenue grade meters meets all measurement and verification based opportunities - including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, series 1000 meters are easy to specify and install for new construction and retrofits.

Leviton® VerifEye™ Meter, 2-Phase 3-Wire 2-Element Surface Mount, Series: 1000, 120/208/240 VAC, 400 A, LCD Display, Isolated Pulse Output Communication, -22 to 140 deg F Operating, Steel, 5.72 in W x 3.57 in D x 8.47 in H Dimensions

Application

Commercial, Institutional, Industrial, Load Profiling, Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement, Verification, Energy Conservation, Cost Reduction, Green Building Initiatives, Government Mandates, Indoor and Outdoor Applications

Standards

ANSI C12.1 | ANSI C12.20 | cULus 916 | UL Listed

Features

Utilizes revenue grade 0.3% accuracy class 0.1 A secondary solid core current transformers that conform to all applicable ANSI requirements or 1% accuracy split core current transformers
Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
Large LCD display shows kWh and instantaneous and peak demand with manual keyed reset
Load indicator LED verifies meter functionality
Reverse phase indicator LED illuminates if the meter is improperly installed
Submetering solutions for accurate measurement and verification
Gray color

Specifications

Amperage Rating:	400 A
Communication:	Isolated Pulse Output
Country of Origin:	US
Dimensions:	5.72 in W x 3.57 in D x 8.47 in H
Display Type:	LCD
Material:	Steel
Operating Temperature:	-22 to 140 deg F
Series:	1000
Voltage Rating:	120/208/240 VAC
