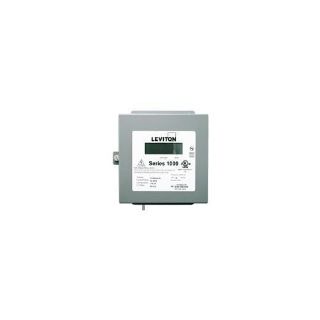

Actual Product May Vary From Image

1N480-11 LEV

Name: 1N480-11 LEV
Brand: Leviton Manufacturing
SKU: 1N480-11 LEV
Availability: OutOfStock

Leviton® VerifEYE™ 1N480-11 1000 1-Phase Dual Element Indoor Phase Meter, 277/480 VAC, 100 A, LCD Display, Pulse Output Communication

Manufacturer: Leviton Manufacturing

Manufacturer part number: 1N480-11

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

1-Phase Dual Element Indoor

Description

The Leviton® VerifEYE™ series 1000 line of revenue grade meters meets all measurement and verification based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, series 1000 m are easy to specify and install for new construction and retrofits.

Leviton® VerifEYE™ Phase Meter, 1-Phase Dual Element Indoor, Series: 1000, 277/480 VAC, 100 A, LCD, Pulse Output Communication, Steel, 8.47 in H x 5.72 in W x 3.57 in D

Application

Institutional, Industrial, Government and Commercial Applications

Standards

ANSI C12.1, C12.20 | cULus 916

Features

2-phase applications
Large LCD display
Equipped with an isolated pulse output channel
Utilizes revenue grade 0.3% accuracy class 0.1 A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split core CTs
Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
Interfaces with numerous communication systems, hardwired automatic meter reading (AMR) or wireless AMR
Load indicator LED verifies meter functionality
Reverse phase indicator LED illuminates if the meter is improperly installed
Measures kWh and demand
Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
JIC steel NEMA 1 - indoor, NEMA 4X - outdoor enclosure and JIC steel NEMA 1 MMU
Isolated pulse output communication protocol
Split/solid core current transformer option
120 VAC, 120/240 VAC, 277 VAC or 277/480 VAC 1 or 2-Phase applications

Specifications

Amperage Rating:	100 A
Communication:	Pulse Output
Country of Origin:	US
Dimensions:	8.47 in H x 5.72 in W x 3.57 in D
Display Type:	LCD
Material:	Steel
Series:	1000
Voltage Rating:	277/480 VAC
