1PAM40MW0L1000 THO

Name: 1PAM40MW0L1000 THO
Brand: Thomson Industries
SKU: 1PAM40MW0L1000 THO
Availability: OutOfStock

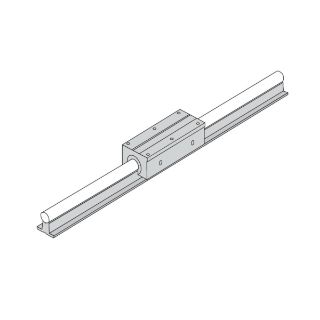

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

1PAM40MW0L1000

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Continuously Supported Standard Profile

Description

The 1PA continuous support (Industry Standard Metric) RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life or 6X the load capacity of conventional bearings, all within the same envelope. The RoundRail™ advantage, the inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing, allows for ultra smooth travel when mounted to wider tolerance prepared surfaces.

Thomson® RoundRail™ Linear Guide, Continuously Supported Standard Profile, Series: 1PA, 40 mm Diameter Nominal, 1000 mm Linear Guide Length, 824 mm Stroke Length, Twin Open Pillow Block Bearing/Bushing, SRAM End Support, 27400 N Dynamic Load, 10 fps Maximum, 185 deg F, Aluminum Alloy Rail, Gray Anodized, 108 mm W x 105 mm H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

High speed, smooth operation and easy to install
Increased life within the same envelope
RoundRail™ linear guides feature the new patented Super Smart Ball Bushing® bearings for up to 216X the life or 6X the load capacity of conventional bearings
Cost savings
Superior performance, continuously supported for maximum (down and side) load applications without concerns for shaft deflection
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
Unlimited travel lengths without concerns for machined reference edges or butt joint alignment
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
Used in continuously supported applications when rigidity is required
Fully supported, highest performance
No table top

Includes

(1) Super Smart Ball BushingÂ® Twin Open Pillow Block, (1) SRAM Series Continuous Shaft Support and (1) 60 CaseÂ® LinearRaceÂ® Round Shaft Support Rail Assembly

Specifications

Bearing/Bushing Type:	Twin Open Pillow Block
Country of Origin:	MX
Dimensions:	108 mm W x 105 mm H
End Support Type:	SRAM
Finish:	Gray Anodized
Linear Guide Length:	1000 mm
Load Capacity:	27400 N Dynamic
Maximum Speed:	10 fps
Nominal Diameter:	40 mm
Rail Material:	Aluminum Alloy
Series:	1PA
Stroke Length:	824 mm
Temperature Rating:	185 deg F
