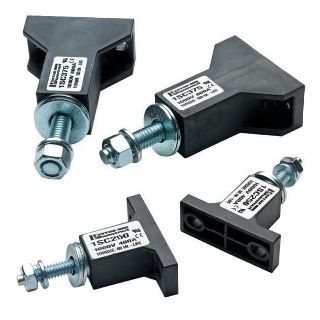

Actual Product May Vary From Image

1SC250 FER

Name: 1SC250 FER
Brand: Mersen
SKU: 1SC250 FER
Price: 19.37 USD
Availability: OutOfStock

Mersen 1SC250 Modular Semiconductor Fuse Block, 1000 VAC, 400 A, 1 Pole

Manufacturer: Mersen

Manufacturer part number: 1SC250

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$19.37

Qty:

Product Details

Brand Name

Mersen

Type

Modular

Alternate Supplier #

Grainger - 540C81

Description

Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse. Mounting hardware is supplied with the blocks.

Mersen Semiconductor Fuse Block, Modular, Series: 1SC, 1000 VAC, 400 A, 1 Pole, 1, Stud, Threaded Mount, Thermoplastic, 2.45 x 1.88 in

Standards

RoHS Compliant | UL 4248-1 | E171957

Features

Modular two piece design
Compact footprint
Heat dissipating integral box connector versions
Accommodates a large range of semiconductor fuses
Rugged phenolic insulators
Zinc-plated steel contact
200 kA short circuit current rating

Specifications

Amperage Rating:	400 A
Connection Type:	Stud
Country of Origin:	MX
Dimensions:	2.45 x 1.88 in
Material:	Thermoplastic
Mounting Type:	Threaded
Number of Phases:	1
Number of Poles:	1
Series:	1SC
Voltage Rating:	1000 VAC
