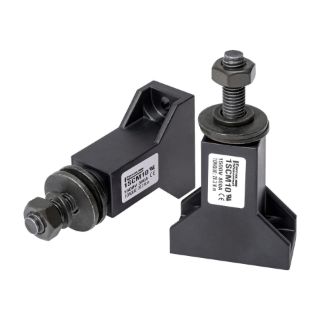

Actual Product May Vary From Image

1SCM10 FER

Name: 1SCM10 FER
Brand: Mersen
SKU: 1SCM10 FER
Price: 21.11 USD
Availability: OutOfStock

Mersen 1SCM10 Modular Semiconductor Fuse Block, 1000 VAC/VDC, 800 A, 1 Pole

Manufacturer: Mersen

Manufacturer part number: 1SCM10

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$21.11

Qty:

Product Details

Brand Name

Mersen

Type

Modular

Description

MERSEN 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse.

Mersen Semiconductor Fuse Block, Modular, Series: 1SC, 1000 VAC/VDC, 800 A, 1 Pole, 1 ph, M8 Stud Connection, Threaded Mounting, Thermoplastic, 3.82 in H x 2.12 in W x 1 in D Dimensions

Standards

RoHS Compliant | UL 4248-1 Guide IZLT2 File No. E171957, E52283 Recognized

Features

Modular two-piece design
Compact footprint
Heat dissipating integral box connector versions
Accommodates a large range of semiconductor fuses
Rugged phenolic insulators
Stud versions

Includes

Mounting Hardware

Specifications

Amperage Rating:	800 A
Connection Type:	M8 Stud
Country of Origin:	MX
Dimensions:	3.82 in H x 2.12 in W x 1 in D
Material:	Thermoplastic
Mounting Type:	Threaded
Number of Phases:	1
Number of Poles:	1
Series:	1SC
Voltage Rating:	1000 VAC/VDC
