1VL34X1/2 BRN

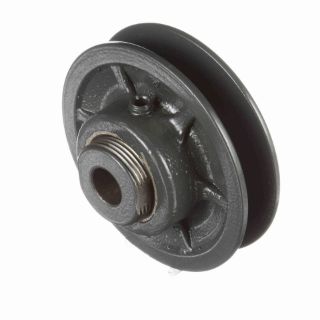

Browning® 1046358 VL Series Variable Pitch Sheave, 1/2 in Finished Bore, 3.15 in OD, 1 Groove, 1.7 to 2.5 in (3L)/2 to 3 in (A/4L)/2.5 to 3.3 in (B/5L) Dia Pitch, 21/32 to 31/32 in W Face
Manufacturer: Regal Rexnord
Manufacturer part number: 1046358
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$48.80

Product Details

Brand Name

Browning®

Description

The principle of a variable pitch sheave is that the threaded angular faced discs forming the V-shaped groove in which the belt rides are movable. VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore. The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with. When the discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed. When the discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed. The common term for this speed adjustment is called number of turns open from closed position.
Browning® Variable Pitch Sheave, Series: VL Series, Finished Bore, 1/2 in Bore, 3.15 in OD, 1.7 to 2.5 in (3L)/2 to 3 in (A/4L)/2.5 to 3.3 in (B/5L) Pitch Diameter, 1 Grooves, 21/32 to 31/32 in Face Width, 5-7/8 in Overall Length, For Use With: GripBelt® 3L, 4L/A and 5L/B Cross Section FHP V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Packaging Machinery, Pulp, Paper and Unit Handling Industries

Features

  • External rib design provides cooling for longer belt life
  • Increases wall thickness by 30%
  • Increased hub diameter by 20%
  • Tighter tolerances by 25%
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Variable speed sheaves through 5 grooves, precision balanced to provide smooth vibration-free performance

Includes

(1) Standard Keyseats and (1) Hollow Head Setscrews

Specifications

Bore Diameter:1/2 in
Bore Type:Finished
Country of Origin:MX
Face Width:21/32 to 31/32 in
Material:Cast Iron
Number of Grooves:1
Outside Diameter:3.15 in
Overall Length:5-7/8 in
Pitch Diameter:1.7 to 2.5 in (3L)/2 to 3 in (A/4L)/2.5 to 3.3 in (B/5L)
Series:VL Series
Suitable For Use With:GripBelt® 3L, 4L/A and 5L/B Cross Section FHP V-Belt
