Actual Product May Vary From Image

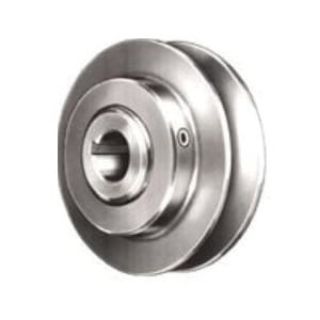

1VP65 1.3/8 GAT

Name: 1VP65 1.3/8 GAT
Brand: Gates
SKU: 1VP65 1.3/8 GAT
Price: 199.67 USD
Availability: OutOfStock

Light Duty Sheaves-Variable Pitch

Manufacturer: Gates

Manufacturer part number: 1VP65 1.3/8

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$199.67

Qty:

Product Details

Brand Name

Gates

Type

Web and Spoke

Alternate Supplier #

78101839

Description

Our variable pitch sheaves are engineered for mechanical drive speed variations that are efficient, easy to install, and easy to adjust for your light-duty applications.

Features

NOTE: Pitch diameter is a reference diameter only. The minimum recommended pitch diameters should be observed for the specific belt section used. Use with PoweRated® belts on light industrial HVAC, outdoor power equipment and appliance applications. Also try our Hi-Power® II A and B industrial belts. Sheave grooves are precision machined to ensure an exact fit. Available in single- or double-groove designs. Details shown which do not affect drive function or overall weight may be changed without notification.

Specifications

Bore (in):	1.375
Bore (mm):	34.9
Country of Origin:	US
GC Base Product:	Light Duty Sheaves - Variable Pitch - One Groove "3L" - "4L" - "5L" - Pitch
Harmonized Tariff Code:	8483.50.9040
Non-Standard:	NO
Number of Grooves:	1
OD (in):	6.5
OD (mm):	165.1
P Dia Max_4L_in:	5.98
P Dia Max_4L_mm:	151.9
P Dia Max_5L_in:	6.45
P Dia Max_5L_mm:	163.8
P Dia Min_4L_in:	4.80
P Dia Min_4L_mm:	121.9
P Dia Min_5L_in:	5.24
P Dia Min_5L_mm:	133.1
Proposition 65:	NO
