2-17 SMT

Name: 2-17 SMT
Brand: Regal Rexnord
SKU: 2-17 SMT
Price: 132.45 USD
Availability: OutOfStock

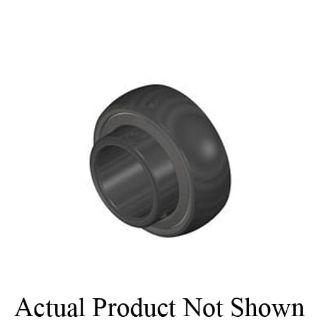

Sealmaster® 700024 Non-Expansion Standard Duty Straight Bore Ball Bearing Insert, 1-7/16 in Dia Bore, 2.8346 in OD, 1-11/16 in W, 5782 lb Dynamic/3493 lb Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 700024

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$132.45

Qty:

Product Details

Brand Name

Sealmaster®

Type

Non-Expansion Standard Duty Straight Bore

Description

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, 1-7/16 in Bore, 2.8346 in OD, 1-11/16 in Width, Double Seal Closure, 5782 lb Dynamic/3493 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 4650 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

Application

Aggregate, Cement, Forestry, HVAC, Metals, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Features

Wide outer ring
Lock pin and dimple system
The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
Zone hardened inner race
Land riding retainer
Lithium complex NLGI #2 grease with an EP additive

Specifications

Bearing Material:	Steel
Bore Diameter:	1-7/16 in
Cage Material:	Brass
Closure Type:	Double Seal
Country of Origin:	MX
Finish:	Black Oxide Coated
Load Capacity:	5782 lb Dynamic/3493 lb Static
Maximum Speed:	4650 rpm
Outside Diameter:	2.8346 in
Seal Material:	Felt
Temperature Rating:	-20 to 220 deg F
Width:	1-11/16 in
