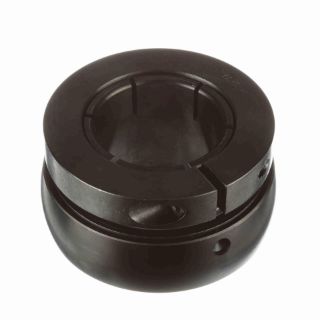

Actual Product May Vary From Image

2-24TC SMT

Name: 2-24TC SMT
Brand: Regal Rexnord
SKU: 2-24TC SMT
Availability: OutOfStock

Sealmaster® 705704 Non-Expansion Standard-Duty Straight Bore Ball Bearing Insert, 2-1/4 in Dia Bore, 4.3307 in OD, 2-5/8 in W, 11789 lb Dynamic/8150 lb Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 705704

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Sealmaster®

Type

Non-Expansion Standard-Duty Straight Bore

Description

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Non-Expansion Standard-Duty Straight Bore, 2-1/4 in Bore, 4.3307 in OD, 2-5/8 in Width, Double Seal Closure, 11789 lb Dynamic/8150 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 2550 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

Application

Aggregate, Cement, Forestry, HVAC, Metals, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Features

Wide outer ring
Lock pin and dimple system
Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
Skwezloc® is a concentric locking collar clamp design that results in near perfect concentricity of the shaft to the bearing bore and maintains near perfect ball path roundness
Zone hardened inner race
Land riding retainer
Lithium complex NLGI #2 grease with an EP additive

Specifications

Bearing Material:	Steel
Bore Diameter:	2-1/4 in
Cage Material:	Brass
Closure Type:	Double Seal
Country of Origin:	MX
Finish:	Black Oxide Coated
Load Capacity:	11789 lb Dynamic/8150 lb Static
Maximum Speed:	2550 rpm
Outside Diameter:	4.3307 in
Seal Material:	Nitrile Rubber
Temperature Rating:	-20 to 220 deg F
Width:	2-5/8 in
