2 C 80 SF AD

Name: 2 C 80 SF AD
Brand: IDC-USA
SKU: 2 C 80 SF AD
Price: 227.56 USD
Availability: OutOfStock

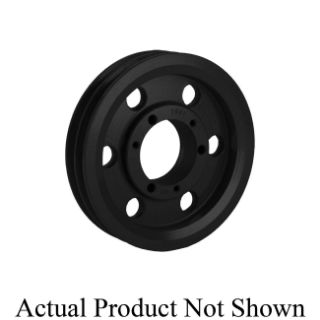

Actual Product May Vary From Image

Product Details

Manufacturer:

IDC-USA

Manufacturer part number:

IDC 2C080SF

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$227.56 / EA

Description

Brand Name

IDC Select®

Type

Heavy Duty Type D-1 Solid

Description

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® QD®® Sheave, Heavy Duty Type D-1 Solid, QD® Bore, 8.4 in OD, 8 in Pitch Diameter, 2 Grooves, 2-3/8 in Face Width, SF Bushing, For Use With: C-Cross Section V-Belts, Cast Iron, Baked Enamel

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Industrial Applications

Standards

ASTM Specified | SAE Standard

Features

Precision machined from gray cast iron
Statically balanced
Cast iron sheaves should not exceed 6500 fpm rim speed
Special or dynamic balancing should be considered when speeds exceed 5000 fpm
Accepts QD® style bushings

Specifications

Bore Type:	QD®
Bushing Type:	SF
Face Width:	2-3/8 in
Finish:	Baked Enamel
Material:	Cast Iron
Number of Grooves:	2
Outside Diameter:	8.4 in
Pitch Diameter:	8 in
Suitable For Use With:	C-Cross Section V-Belts
