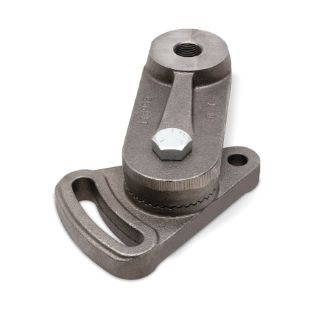

Actual Product May Vary From Image

20-IDL-BRAK GAT

Name: 20-IDL-BRAK GAT
Brand: Gates
SKU: 20-IDL-BRAK GAT
Price: 342.25 USD
Availability: OutOfStock

POLYCHAIN IDLER HARDWARE 7720-1020

Manufacturer: Gates

Manufacturer part number: 20-IDL-BRAK

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$342.25

Qty:

Product Details

Brand Name

Gates

Type

Idler Brackets

Alternate Supplier #

77201020

Description

Idlers are used to take-up extra belt length and provide adjustment for tensioning belt drives. Idler pulleys and sprockets can alter belt paths and clear obstructions.

Features

Idler assembly may consist of: idler sprocket and bracket, flat idler and bracket, standard sheave or sprocket used with an idler bearing and idler bracket. Idler sprockets, flat idlers and idler bushings contain sealed ball bearings and an integral shaft for mounting to adjustable idler brackets. Lubrication and maintenance are not required.

Specifications

A (in):	6.94
A (mm):	176.3
B (in):	5.25
B (mm):	133.4
C (in):	2.63
C (mm):	66.8
Country of Origin:	US
D (in):	5.00
D (mm):	127
E (in):	3.00
E (mm):	76.2
F (in):	4.56
F (mm):	115.8
G (in):	.63
G (mm):	16
GC Base Product:	7 IDLR BRACKET
H (in):	2.38
H (mm):	60.5
Harmonized Tariff Code:	8483.50.9080
J (in):	1.00
J (mm):	25.4
Material:	Steel
N (in):	1.63
N (mm):	41.4
P (in):	2.94
P (mm):	74.7
Proposition 65:	NO
Q (in):	2.75
Q (mm):	69.9
Thread Size:	1-14
Use Bushing:	30-IDL-BUSH (SF), 40-IDL-BUSH (E)
Use Idlr Pul OD:	6.5
Use Spkt Pitch:	14mm
