20-IDL-BUSH(SK) GAT

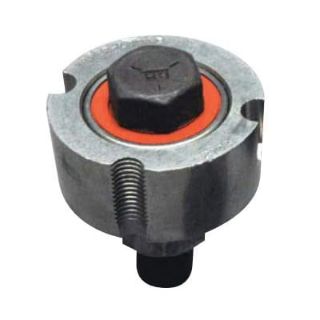

Picture of 20-IDL-BUSH(SK) GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
20-IDLR-BUSH(SK)
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$388.62 / EA

Description

Brand Name

Gates®

Description

Idlers are used to take up extra belt length and provide adjustment for tensioning belt drives. Idler pulleys and sprockets can alter belt paths and clear obstructions.
Gates® QD Idler Bushing, 3/4 in Bore Dia, 2.82 in Hub Dia, 3-5/16 in Bolt Circle, 3.88 in Flange Dia, 9/16 in Flange Thickness, 6 Bolt Holes, 5/16-18 x 2 in Screw, Ball Bearing

Application

For drives with limited take up or no center distance adjustment

Features

  • Size SK bushing
  • Idler sprockets, flat idlers and idler bushings contain sealed ball bearings and an integral shaft for mounting to adjustable idler brackets
  • Lubrication and maintenance are not required
  • A perfect solution for customizing belt drives
  • Turn standard V-belt pulleys or synchronous belt sprockets into a free-spinning idler/tensioner

Specifications

Bearing Type:Ball
Bolt Circle Diameter:3-5/16 in
Bore Diameter:3/4 in
Country of Origin:US
Flange Diameter:3.88 in
Flange Thickness:9/16 in
Hub Diameter:2.82 in
Number of Bolt Holes:6
Screw Size:5/16-18 x 2 in
