Actual Product May Vary From Image

2003 INA

Name: 2003 INA
Brand: INA
SKU: 2003 INA
Availability: OutOfStock

INA 2003 Axial Deep Groove Ball Bearing, 13/32 in Dia Bore, 3/4 in OD, 1 Rows, 1/4 in W, 1070 lb Dynamic/1530 lb Static Load

Manufacturer: INA

Manufacturer part number: 2003

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

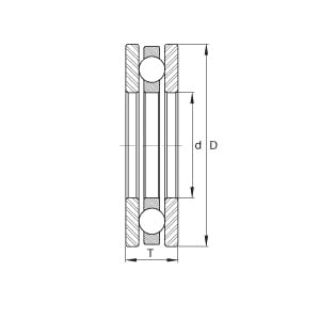

INA Axial Deep Groove Ball Bearing, Series: 20 Series, 13/32 in Bore Dia, 3/4 in Outside Dia, 1 Rows, 1/4 in Width, Separable Face, Single Thrust Direction, 1070 lb Dynamic/1530 lb Static, Steel Bearing, 14000 rpm Maximum

Features

Light/medium cross section
Grooved race
Separable axial contact
Speed limit shown is for oil lubrication

Specifications

Bearing Material:	Steel
Bore Diameter:	13/32 in
Face Type:	Separable
Load Capacity:	1070 lb Dynamic/1530 lb Static
Maximum Speed:	14000 rpm
Number of Rows:	1
Outside Diameter:	3/4 in
Series:	20 Series
Thrust Direction:	Single
Width:	1/4 in
