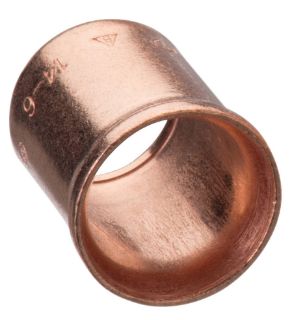

Actual Product May Vary From Image

2006S IDE

Name: 2006S IDE
Brand: Ideal Industries
SKU: 2006S IDE
Price: 0.24 USD
Availability: InStock

BUCHANAN 2006S Splice Cap Crimp Connector, 18 to 10 AWG Solid Copper Wire, Non-Insulated Insulation, Copper

Manufacturer: Ideal Industries

Manufacturer part number: 2006S

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
700	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.24

Qty:

Product Details

Brand Name

BUCHANAN

Type

Splice Cap

Alternate Supplier #

Grainger - 4FA30

Description

Crimp connectors from IDEAL® are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.

BUCHANAN Crimp Connector, Splice Cap, Solid Copper Wire, 18 to 10 AWG Wire, Non-Insulated Insulation, 600 VAC, (2) 18 AWG Minimum, (4) 12 AWG Max Wire Combination, 221 deg F, Copper, Zinc Plated, 0.211 in Dia x 0.425 in L

Application

For fast, permanent, pressure type connections and C24 crimp tools

Standards

RoHS Compliant | CSA C22.2 No. 188 | UL 486C | W-S-61D Federal Specification

Features

Solid copper sleeve require less crimping pressure and resist corrosion in harsh environments

Specifications

Country of Origin:	US
Dimensions:	0.211 in Dia x 0.425 in L
Finish:	Zinc Plated
Insulation Type:	Non-Insulated
Material:	Copper
Specifications:	(2) 18 AWG Minimum, (4) 12 AWG Max Wire Combination
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
Wire Size:	18 to 10 AWG
Wire Type:	Solid Copper
