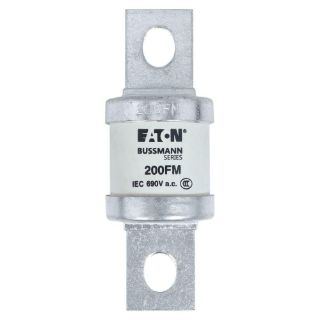

Actual Product May Vary From Image

200FM BSF

Name: 200FM BSF
Brand: Bussmann
SKU: 200FM BSF
Price: 626.70 USD
Availability: OutOfStock

Bussmann 200FM British Standard High Speed Fuse, 200 A, 690 V, 200 kA Interrupt, Class: AR, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 200FM

Availability: Expected Leadtime 33 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$626.70

Qty:

Product Details

Brand Name

Bussmann

Type

British Standard

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed Fuse, British Standard, Series: FM Series, Non-Indicating, 200 A, 690 V, 200 kA Interrupt, Class: AR, Blade End Terminal, Stud Mounting, Cartridge Body, 113 mm L x 38.1 mm W x 41 mm H Body

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems

Standards

Features

Excellent cycling capability
Excellent DC performance
Low arc voltage and low energy let through
BS88 style bolted tags high speed fuse
Low wattage loss
200 kA at AC, 40 kA at 450 VDC, 50 kA at 500 VDC interrupt rating
40 W power loss

Specifications

Amperage Rating:	200 A
Body Size:	113 mm L x 38.1 mm W x 41 mm H
Body Type:	Cartridge
Class:	AR
Country of Origin:	IN
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Series:	FM Series
Terminal Type:	Blade
Voltage Rating:	240 VAC/150 VDC
