200LMT BSF

Name: 200LMT BSF
Brand: Bussmann
SKU: 200LMT BSF
Price: 502.48 USD
Availability: OutOfStock

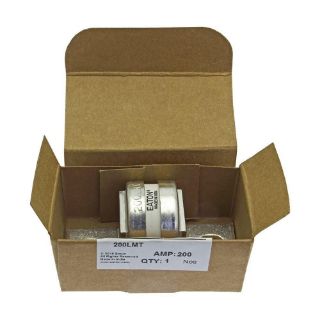

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

200LMT

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 33 days

Estimated dates are contingent upon manufacturer stock.

$502.48 / EA

Description

Brand Name

Bussmann

Type

British Standard

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed Fuse, British Standard, Series: LMT, Non-Indicating, 200 A, 240 V, 200 kA Interrupt, Class: AR, Blade End Terminal, Stud Mounting, Cartridge Body, 84 mm L x 38.1 mm W x 41 mm H Body

Application

Aftermarket, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories Facility, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, AC/DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems

Standards

Features

Excellent cycling capability
Excellent DC performance
Low arc voltage and low energy let through
BS88 style bolted tags high speed fuse
Low wattage loss in a compact size
200 kA at 240 VAC, 40 kA at 150 VDC for IEC, 200 kA at 250 VAC, 50 kA at 150 VDC for UL interrupt rating
28 W power loss

Specifications

Amperage Rating:	200 A
Body Size:	84 mm L x 38.1 mm W x 41 mm H
Body Type:	Cartridge
Class:	AR
Country of Origin:	IN
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Series:	LMT
Terminal Type:	Blade
Voltage Rating:	240 V
