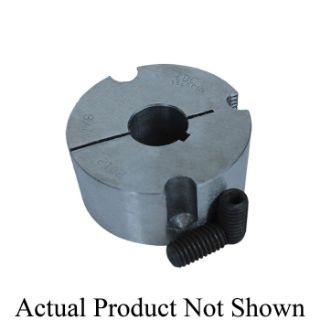

Actual Product May Vary From Image

2012 1 1/4 AD

Name: 2012 1 1/4 AD
Brand: IDC-USA
SKU: 2012 1 1/4 AD
Price: 20.65 USD
Availability: OutOfStock

IDC Select® IDC 2012-1-1/4 Finished Bore Taper-Lock® Bushing, 1-1/4 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, Nodular Graphite Cast Iron

Manufacturer: IDC-USA

Manufacturer part number: IDC 2012-1-1/4

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$20.65

Qty:

Product Details

Brand Name

IDC Select®

Type

Finished Bore

Description

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® Taper-Lock® Bushing, Finished Bore, 1-1/4 in Bore Dia, 2-3/4 in Barrel Dia, 8 deg Taper, 2-5/8 in Bolt Circle, 7/16-14 UNC Screw, 273 in-lb, 1-1/4 in Overall Length, 1/4 x 1/8 in Keyway, Nodular Graphite Cast Iron

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Standard Industrial Applications

Standards

ANSI Specified | ASTM A536/A536-84 | SAE Standard

Features

Flush mount - clean and compact
Easy installation and dismount
8 deg taper - fits equivalent to shrink fit
Globally accepted
Keystock provided with shallow key sizes
2012 Taper-Lock® bushing

Includes

5 mm Hex Setscrew

Specifications

Barrel Diameter:	2-3/4 in
Bolt Circle Diameter:	2-5/8 in
Bore Diameter:	1-1/4 in
Keyway Size:	1/4 x 1/8 in
Material:	Nodular Graphite Cast Iron
Overall Length:	1-1/4 in
Screw Size:	7/16-14 UNC
Taper:	8 deg
Torque Rating:	273 in-lb
