Actual Product May Vary From Image

202S20R DOD

Name: 202S20R DOD
Brand: Dodge
SKU: 202S20R DOD
Price: 963.76 USD
Availability: OutOfStock

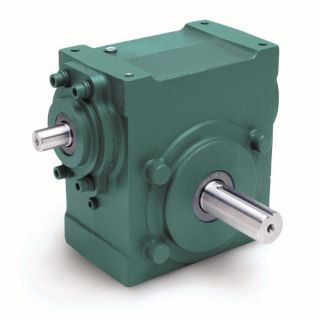

TIGEAR-2 REDUCER W/EXT O/P SHAFT

Manufacturer: Dodge

Manufacturer part number: 202S20R

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$963.76

Qty:

Product Details

Base to Output Center Height:	2.2400
Base to Output Center Height (Unit):	INCH
Case Size:	202
Center Distance:	2.0000
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	6.6900
Center to End of Shaft Distance (Unit):	INCH
Horsepower Rating Input:	1.3400
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	1.1100
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Separate
Lubrication:	PAG, Standard Temperature
Mounting Bolt Pattern Length:	5.0000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.8800
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	20.0000
Output Shaft:	Right (Solid B)
Output Style:	Right
Overhung Load:	1560
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	796
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Input:	0.6250
Shaft Diameter Input (Unit):	INCH
Shaft Diameter Output:	1.0000
Shaft Diameter Output (Unit):	INCH
Shaft Length Input:	1.1500
Shaft Length Input (Unit):	INCH
Shaft Length Output:	4.1100
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	1.9900
Thermal Horsepower Rating (Unit):	HORSEPOWER
