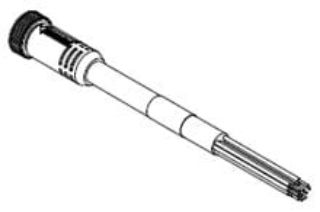

Actual Product May Vary From Image

207002A01F1201 WOO

Name: 207002A01F1201 WOO
Brand: Molex/Woodhead
SKU: 207002A01F1201 WOO
Price: 136.39 USD
Availability: OutOfStock

Brad® 207002A01F1201 130007 Single Ended Cordset, 1-16 UN Straight Male Connector, 12 ft L Cable, 7 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 207002A01F1201

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$136.39

Qty:

Product Details

Brand Name

Brad®

Type

Single Ended

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.

Brad® Cordset, Single Ended, Series: 130007, Straight Male Connector, 1-16 UN Connector, PVC Connector, STOOW Cable, 12 ft Cable Length, PVC Cable, 7 Pole, Single Keyway, 600 VAC, 8 A, Black/Blue/Green/Orange/Red/White Wire Pin, NEMA 6P/IP68 NEMA Rating

Application

For commercial and industrial light displays, float switches on commercial sump pumps, fractional horse power motors, industrial heaters, industrial refrigeration systems, limit switches, linear position transducers and load cells

Standards

UL E152210 | CSA LR6837

Features

Patented, Quad Beam™ socket contact with stainless steel sleeve, maintains consistent pressure on the male pin to ensure optimum conductivity
Gold over nickel plated contacts high performance, long lasting plating that maintains low resistance through many mate /unmate cycles
Molded key indicator easier alignment and mating of connector
Integral strain relief provides 100 lb minimum cable strain relief radiates stress in side loaded conditions
Prevents the entry of water during temporary submersion at a limited depth
16 AWG yellow cable
Epoxy coated zinc coupling nut
-20 to 105 deg C operating temperature

Specifications

Amperage Rating:	8 A
Cable Length:	12 ft
Cable Material:	PVC
Cable Type:	STOOW
Connector Material:	PVC
Connector Size:	1-16 UN
Connector Type:	Straight Male
Country of Origin:	US
Keyway:	Single
NEMA Rating:	NEMA 6P/IP68
Number of Poles:	7
Series:	130007
Voltage Rating:	600 VAC
Wire Pin Colors:	Black/Blue/Green/Orange/Red/White
