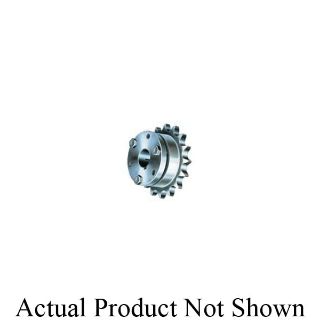

Actual Product May Vary From Image

2080P17 BRN

Name: 2080P17 BRN
Brand: Regal Rexnord
SKU: 2080P17 BRN
Availability: OutOfStock

Browning® 1173509 Single Strand Roller Chain Sprocket, 1/2 to 1-3/4 in Dia Bore, 5.94 in OD, 2080 Chain, 17 Teeth, 2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1173509

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand

Description

Browning® stock sprockets for extended pitch chain have larger pitch diameters than standard roller chain sprockets as extended pitch chain will not operate satisfactorily on standard roller chain sprockets with less than 24 teeth. They will normally operate satisfactorily on standard roller chain sprockets with 24 or more teeth. Sprockets for extended pitch chain with large rollers are available on special order.

Browning® Roller Chain Sprocket, Single Strand, 1/2 to 1-3/4 in Bore Dia, 5.94 in Outside Dia, 2080 Chain, 17 Teeth, 2 in Pitch, 5.5365 in, 3 in Hub Dia, 1-15/16 in Length Through Bore, Type P1 Split Taper Bushing, Steel

Application

Aggregate and Cement, Agriculture, Forestry, Minerals and Mining and Pulp and Paper Industries

Features

Easy installation and removal
Hardened teeth at no extra cost drive sizes up to 30 teeth on 35 through 160 chain
External key have higher torque capacity, aligns bolt holes
Provides key to key drive
Solid flange true concentricity, easy installation
Longer barrel have better support on the shaft

Specifications

Bore Diameter:	1/2 to 1-3/4 in
Bushing Type:	Type P1 Split Taper
Chain Size:	2080
Country of Origin:	CN
Hub Diameter:	3 in
Length Through Bore:	1-15/16 in
Material:	Steel
Number of Teeth:	17
Outside Diameter:	5.94 in
Pitch:	2 in
Pitch Diameter:	5.5365 in
