209P TKN

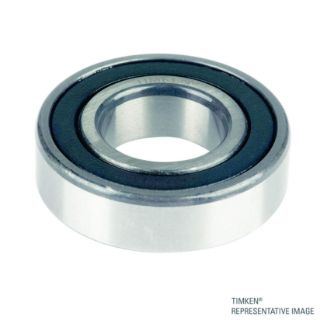

Fafnir® 209PZ6FS50000 200K Light Round Bore Radial Deep Groove Ball Bearing, 45 mm Dia Bore, 85 mm OD, 1 Row, 19 mm W, 36300 N Dynamic/20500 N Static Load
Manufacturer: Timken
Manufacturer part number: 209PZ6FS50000
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$119.98

Product Details

Brand Name

Fafnir®

Type

Light Round Bore

Description

Bearings in the 200 series bearings feature a close dimensional balance between bore, outside diameter and width. These characteristics make them well-suited for a broad range of applications involving light to medium loads combined with relatively high-speeds. Wide-type 200 series rubber seal(W200PP) and mechani-seal(W200KLL) bearings are made with standard bores and outside diameters, but in widths equal to the corresponding sizes of double-row bearings. This series offers a larger support area for shaft and housing contact and extra space for lubricant.
Fafnir® Radial Deep Groove Ball Bearing, Light Round Bore, Series: 200K, 45 mm Bore Dia, 85 mm Outside Dia, 1 Row, 19 mm W, Single Sealed Closure, 36300 N Dynamic/20500 N Static, Steel Bearing, Buna-N Seal, Steel Cage, 4850 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agricultural, Automotive, Chemical, General Industrial and Utilities

Standards

ABEC 1 Certified

Features

  • Conrad-type bearing is well-balanced, with deep races and uninterrupted race shoulders
  • Excellent, general purpose bearing
  • Capacity to carry radial and thrust in either direction or combined loads
  • Electric motor quality for applications where quietness is a requirement

Specifications

Bearing Material:Steel
Bore Diameter:45 mm
Cage Material:Steel
Closure Type:Single Sealed
Country of Origin:US
Finish:Uncoated
Load Capacity:36300 N Dynamic/20500 N Static
Maximum Speed:4850 rpm
Number of Rows:1
Outside Diameter:85 mm
Seal Material:Buna-N
Series:200K
Temperature Rating:-30 to 275 deg F
Width:19 mm
