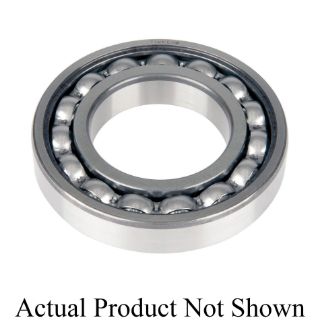

Actual Product May Vary From Image

209W TKN

Name: 209W TKN
Brand: Timken
SKU: 209W TKN
Price: 207.94 USD
Availability: OutOfStock

Deep Groove Radial Ball Bearing

Manufacturer: Timken

Manufacturer part number: 209W

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$207.94

Qty:

Product Details

Brand Name

Timken

Description

Timken supplies a full range of product in the world’s most popular design series. Timken® deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

Deep Groove Radial Ball Bearing | 45 mm 1.8 in Bore | 85 mm 3.3 in OD

Features

Super finished raceways
Quiet operations
Light 200 Series have a close dimensional balance between bore, outside diameter and width making them well-suited for applications with light to medium loads and high speed
Max capacity ball configuration for increased radial load capabilities

Specifications

Bearing Material:	Steel
Bearing Type:	Ball Bearing
Bore Size (ID) - in:	1.7717
Bore Size (ID) - mm:	45
Bore Type:	Straight
Closure (Seal) type:	Open
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	8160
Fillet Radius - Inch:	0.049
Fillet Radius - Millimeter:	1
Inner Ring Width - Inch:	0.748
Inner Ring Width - Millimeter:	19
Internal Clearance:	R
Load Rating UOM:	LB
Lubrication Hole/Groove:	No
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/ball/deep-groove/
Material - Rolling Elements (Ball or Roller):	Ball
Maximum Operating RPM (Grease):	5555.55555555556
Maximum Operating RPM (Oil):	6666.66666666667
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	3.3465
Outer Diameter - mm:	85
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.748
Outer Ring Width - Millimeter:	19
Overall Width - in:	0.748
Overall Width - mm:	19
Precision class:	ABEC1
Relubricatable:	No
Retainer Material:	Cold Rolled Steel
Rolling Element:	Ball
Row Type:	Single
Self Aligning:	No
Series:	200
Static Load Rating:	4600
