20GCT 15 LR 56C MOR

The GC models are C-face reducers. The GCT style has a horizontal shaft. The GCV style has a vertical output shaft. The GCBD is double reduction "B" style unit and the GCDV is a double reduction "V" style unit. The C-face reducers are offered in eight sizes for use with motors from 1/6 hp through 15 hp. The design permits attaching standard NEMA® "C" flange, end mounted, motors of any brand.

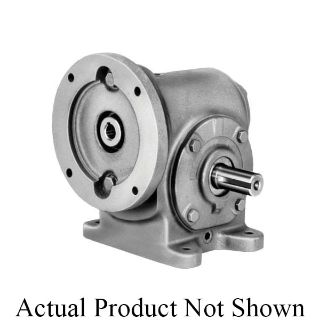

Morse® POWERGEAR® Worm Gear Reducer, Single Reduction, Series: GCT, 15:1 Gear Ratio, 1/1.44 hp, C-Face Quilled Input, Left and Right Output, 5/8 in Input, 1 in OD x 2-1/4 in L Output, 116.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 663 in-lb Output, 2 in Centre Distance, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 7.625 in L x 9.75 in W x 8.813 in H
