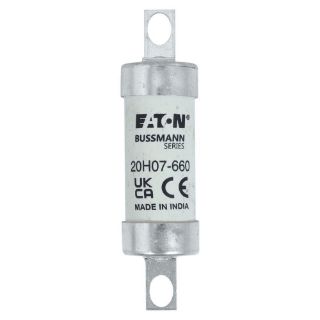

Actual Product May Vary From Image

20H07-660 BSF

Name: 20H07-660 BSF
Brand: Bussmann
SKU: 20H07-660 BSF
Availability: OutOfStock

Bussmann 20H07-660 H07-660 British Standard Low Voltage HRC Fuse Link, 20 A, 690 VAC/250 VDC, 80 kA Interrupt, Class: GL/GG, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 20H07-660

Availability: Expected Leadtime 41 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Standard Low Voltage

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann HRC Fuse Link, British Standard Low Voltage, Series: H07-660, Indicating/Non-Indicating: Non-Indicating, 20 A, 690 VAC/250 VDC, 80 kA Interrupt, Class: GL/GG, Blade Terminal, Stud Mount, Body Type: Cartridge, Ceramic

Application

For protection of large industrial installations up to 690 VAC

Standards

BS88 | IEC 60269

Features

Good peak let through current limitation
1:1:6 selective coordination ratio between minor and major fuse
GG characteristics for cable protection and general purpose applications
Power loss values within the limits of IEC 60269

Specifications

Amperage Rating:	20 A
Body Type:	Cartridge
Class:	GL/GG
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	80 kA
Material:	Ceramic
Mounting Type:	Stud
Series:	H07-660
Terminal Type:	Blade
Voltage Rating:	690 VAC/250 VDC
