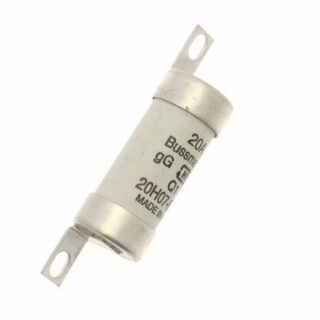

Actual Product May Vary From Image

20H07C BSF

Name: 20H07C BSF
Brand: Bussmann
SKU: 20H07C BSF
Availability: OutOfStock

Bussmann 20H07C Canadian Non-Indicating Cable Limiter Fuse, 20 A, 600 VAC, 200 kA Interrupt, Cartridge Blade Body

Manufacturer: Bussmann

Manufacturer part number: 20H07C

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Canadian Non-Indicating

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Cable Limiter Fuse, Canadian Non-Indicating, 20 A, 600 VAC, 200 kA Interrupt, Bolted-Down Terminal, Stud Mounting, Cartridge Blade Body, Ceramic, 0.56 in Dia x 30.38 in L Body

Application

Motor Control Circuits, Contactors and Overload Protection Relays Applications

Standards

CE Certified | CSA C22.2 No. 106M1992 | BS 88:2 | IEC 60269:2 | IEC 60947-4

Features

Package Type: Standard
Contact Material: HRC Form II
Width: 0.56 in
Weight: 0.1 lbs
Dimensions: 0.56 in Dia x 3.38 in L
Length: 3.38 in
Height: 0.56 in
Indicator: Non-Indicating

Specifications

Amperage Rating:	20 A
Body Size:	0.56 in Dia x 3.38 in L
Body Type:	Cartridge
Country of Origin:	GB
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Stud
Series:	H07C
Terminal Type:	Bolted-Down
Voltage Rating:	600 VAC
