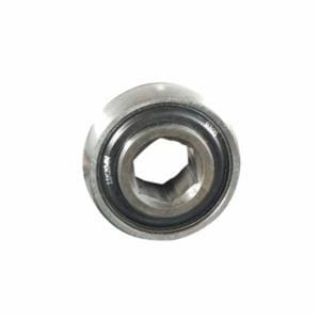

Actual Product May Vary From Image

20KB8208E LBB

Name: 20KB8208E LBB
Brand: Rexnord
SKU: 20KB8208E LBB
Availability: OutOfStock

Link-Belt® 20KB8208E 200 Standard Duty Unmounted Hex Bore Ball Bearing, 1-1/4 in Dia Bore, 3.1496 in OD, 0.7087 in W, 7330 lb Dynamic/4460 lb Static Load

Manufacturer: Rexnord

Manufacturer part number: 20KB8208E

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Standard Duty Unmounted

Description

Link-Belt® Hex Bore Ball Bearing, Standard Duty Unmounted, Series: 200, 1-1/4 in Bore Dia, 3.1496 in Outside Dia, 0.7087 in Width, 0.13 in Flange Thickness, 7330 lb Dynamic/4460 lb Static Load, Alloy Steel Bearing, 8000 rpm Maximum, -40 to 225 deg F

Features

Outside diameter of outer ring is cylindrical
Non-relubricatable
Wide metric width outer ring
Wide inch width inner ring
Single lip seal
Precision deep groove ball bearings or quality alloy bearing steel provide high capacity and long life

Specifications

Bearing Material:	Alloy Steel
Bore Diameter:	1-1/4 in
Country of Origin:	MX
Flange Thickness:	0.13 in
Load Capacity:	7330 lb Dynamic/4460 lb Static
Maximum Speed:	8000 rpm
Outside Diameter:	3.1496 in
Series:	200
Temperature Rating:	-40 to 225 deg F
Width:	0.7087 in
