Actual Product May Vary From Image

20SG2209E3 LBB

Name: 20SG2209E3 LBB
Brand: Rexnord
SKU: 20SG2209E3 LBB
Availability: OutOfStock

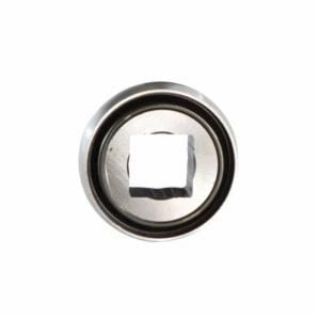

Link-Belt® 20SG2209E3 200 Standard Duty Unmounted Square Bore Ball Bearing, 1-1/4 in Dia Bore, 3.3465 in OD, 0.8661 in W, 7370 lb Dynamic/4590 lb Static Load

Manufacturer: Rexnord

Manufacturer part number: 20SG2209E3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Standard Duty Unmounted

Description

Link-Belt® Square Bore Ball Bearing, Standard Duty Unmounted, Series: 200, 1-1/4 in Bore Dia, 3.3465 in Outside Dia, 0.8661 in Width, 0.28 in Flange Thickness, 7370 lb Dynamic/4590 lb Static Load, Alloy Steel Bearing, 6850 rpm Maximum, -40 to 225 deg F

Features

Outside diameter of outer ring is spherical
Relubricatable, alignable
Basic inch width outer ring
Intermediate inch width inner ring
Triple lip seal
Precision deep groove ball bearings or quality alloy bearing steel provide high capacity and long life

Specifications

Bearing Material:	Alloy Steel
Bore Diameter:	1-1/4 in
Country of Origin:	MX
Flange Thickness:	0.28 in
Load Capacity:	7370 lb Dynamic/4590 lb Static
Maximum Speed:	6850 rpm
Outside Diameter:	3.3465 in
Series:	200
Temperature Rating:	-40 to 225 deg F
Width:	0.8661 in

Resources

Video
