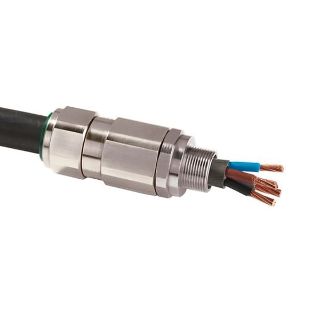

Picture of 20T30754 APN
Actual Product May Vary From Image

20T30754 APN

Appleton® 20T30754 T3 Series Straight Cable Gland, 3/4 in NPT Thread, 0.49 to 0.82 in Cable, 15 mm L Thread, 316L Stainless Steel
Manufacturer: Appleton
Manufacturer part number: 20T30754
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Appleton®

Type

Straight

Description

Appleton® T3 Series Nickel Plated Brass Cable Glands are suitable for all types of armored cable certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and Ex d flameproof. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Appleton® Cable Gland, Straight, Series: T3 Series, 3/4 in NPT Thread, 0.49 to 0.82 in Cable Dia, 15 mm Thread Length, -60 to 130 deg C, 316L Stainless Steel

Application

For use in hazardous areas with all types of armored cable

Standards

ABS Approved | ATEX 94/9/CE EX II 2G 3G 1D | ATEX Sira 13ATEX1073X/13ATEX4079X | ATEX/IECEx Ex d IIC Gb/Ex e IIC Gb/Ex nR IIC Gc/Ex ta IIIC Da | ATEX/IECEx Zone 1 and 2 21 and 22 Ex II 2 GD IP66/68 | cCSAus 101909 | CCOE/PESO Certified | CE DC07001 | CSA C22.2 #174 | DNV Approved | Deluge Protection Compliance DTS01:91 | EN/IEC 60529 IP66/IP67/IP68 | EURASEC TC RU C-GB.05.B.00138 | IECEx SIR 13.0028X | IECEx SIM 14.0007X | INMETRO TUV 11.0374X | KCC Certified | LLOYDS Approved | NEC/CEC Class I Division 2 Group A B C D/Class II Division 2 Group E F G/Class III/Class I Zone 1 AEx e IIC, AEx nR II/Ex d IIC, Ex e IIC, Ex nR IIC | UL 2225

Features

  • Cable gland with elastomer seal for use in hazardous areas with all types of armored cable
  • This product utilizes a unique compensating displacement seal (CDS) system which provides full compatibility with restricted breathing equipment
  • The CDS system is designed to alleviate any pressure on soft bedded cables
  • The cable gland allows mechanical cable retention and earth continuity via armor termination
  • A reversible armor cone and anyway universal clamping ring arrangement allows the cable to be easily disconnected from equipment
  • The cable gland is IP66/68 rated with deluge protection to DTS01: 91
  • Inspection of the armor can be carried out while still maintaining the protection mode of the enclosure
  • Sealing technique: Inner displacement seal and LRS (load retention seal) outer seal
  • Constructional feature flameproof

Specifications

Cable Diameter:0.49 to 0.82 in
Country of Origin:GB
Material:316L Stainless Steel
Series:T3 Series
Temperature Rating:-60 to 130 deg C
Thread Length:15 mm
Thread Size:3/4 in NPT
