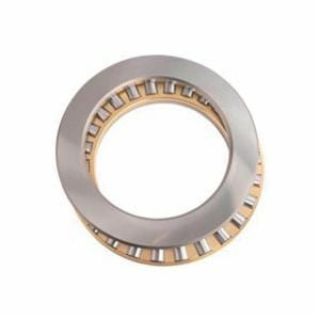

Picture of 20TP103 TKN
Actual Product May Vary From Image

20TP103 TKN

Timken® 20TP103 Type TP Thrust Cylindrical Roller Bearing, 2 in Dia Bore, 6 in OD, 1 Row, 1-3/8 in W, 84300 lb Dynamic/315400 lb Static Load
Manufacturer: Timken
Manufacturer part number: 20TP103
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,720.29

Product Details

Brand Name

Timken®

Type

Type TP

Description

Designed to operate under heavy loads at moderate speed, standard versions of type TS bearings can be operated at peripheral speeds of up to 3000 fpm. Special design features are available for both the bearing and mounting, permitting even higher rotational speeds for this bearing type.
Timken® Thrust Cylindrical Roller Bearing, Type TP, 2 in Bore Dia, 6 in Outside Dia, 1 Rows, 1-3/8 in Width, 84300 lb Dynamic/315400 lb Static, Steel Bearing, 1900 rpm Maximum, -65 to 250 deg F

Application

Cone Crushers, Crane Hooks, Extruders, Gearboxes, Oil Well Swivels, Power Drives, Pulverizers and Pumps

Features

  • Includes two flat-hardened, ground steel washers with a cage retainer holding one or more controlled contour rollers in each pocket
  • Overlapping roller paths prevent ''grooving'' of races and prolong bearing life
  • Minor radial displacement of the races does not affect the operation of a TP bearing, resulting in manufacturing economies and easy installation
  • Simple design is the most economical to purchase and install

Includes

(2) Flat-Hardened Ground- Steel Washers

Specifications

Bearing Material:Steel
Bore Diameter:2 in
Load Capacity:84300 lb Dynamic/315400 lb Static
Maximum Speed:1900 rpm
Number of Rows:1
Outside Diameter:6 in
Temperature Rating:-65 to 250 deg F
Width:1-3/8 in
