213-Z TKN

Name: 213-Z TKN
Brand: Timken
SKU: 213-Z TKN
Price: 246.93 USD
Availability: OutOfStock

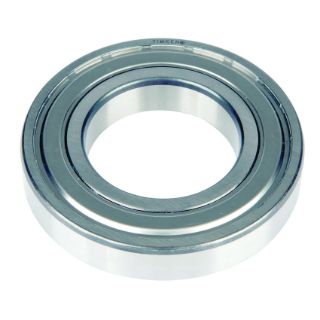

Timken® 213-Z Straight Bore Deep Groove Ball Bearing, 65 mm Dia Bore, 120 mm OD, 23 mm W, 69100 N Dynamic/65100 N Static Load

Manufacturer: Timken

Manufacturer part number: 213-Z

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$246.93

Qty:

Product Details

Brand Name

Timken®

Type

Straight Bore

Description

Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability and capability to run at high speeds. Most bearings in the 6000 series up to 60 mm bore can be made available in stainless steel (AISI 440C material) upon request.

Timken® Deep Groove Ball Bearing, Straight Bore, 65 mm Bore, 120 mm OD, 23 mm Width, Single Shield Closure, 69100 N Dynamic/65100 N Static Load, Steel Cage

Application

For electric motor

Standards

ABEC 1 Standard

Features

Super finished raceways
Quiet operations
Robust design supports higher radial loads
Shields provides some contamination protection and lubricant retention
Used in high speed applications like electric motors
Premium grease for high performance, low torque and less noise
C0 normal internal clearance
Maximum capacity

Specifications

Bore Diameter:	65 mm
Cage Material:	Steel
Closure Type:	Single Shield
Load Capacity:	69100 N Dynamic/65100 N Static
Outside Diameter:	120 mm
Width:	23 mm
