Actual Product May Vary From Image

213HWP RAC

Name: 213HWP RAC
Brand: Raco Industries
SKU: 213HWP RAC
Availability: OutOfStock

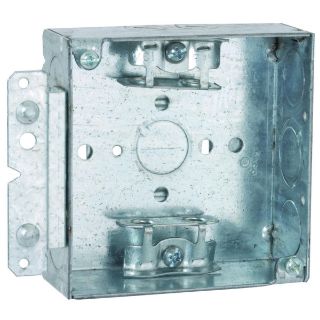

RACO® 213HWP Square Box, Steel, 21 cu-in Capacity, 11 Knockouts, 4 in H x 4 in W x 1-1/2 in D

Manufacturer: Raco Industries

Manufacturer part number: 213HWP

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

RACO®

Description

RACO® is the United States' leading manufacturer of steel electrical boxes and covers. RACO® manufactures and/or sells steel and plastic boxes used at outlets, switch locations and junction points. RACO® also offers a broad line of metallic fittings, including rigid plastic conduit fittings, EMT (thin wall) fittings and liquid tight conduit fittings.

RACO® Square Box, 11 Knockouts, 1/2 in Knockout, Squared, 21 cu-in, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 1-1/2 in D

Application

Lighting Fixtures, Switches or Receptacles and Electrical Applications

Standards

ARRA Compliant | Buy American Act Compliant | UL File No. E195978

Features

Welded construction
Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices
BOX-LOC (MS) bracket box is a snap to install
Combination cover screw heads provide for faster mudring/cover installation
TKO knockouts offer greater flexibility with RACO® patented combination 1/2 in and 3/4 in knockout
UBS support - welded to box, preset bend points to work with wall thickness 2-1/2 to 6 in
Suitable for use without a bonding jumper in circuits above or below 250 volts
Universal box stabilizer bracket
Cable entry: Pryouts for nonmetallic sheathed cable and knockouts for conduit
Patented TKO 1/2 in and 3/4 in eccentric knockouts (Per U.L. 514-A, suitable for use without a bonding jumper in circuits above or below 250 VAC)
Place the bracket on the open side of the stud first
Slots in the bracket engage the lip of the stud and actually crimp it as you press the bracket on the stud, quickly locking it in place

Includes

Universal Box Stabilizer Bracket and Armored Cable/Metal Clad/Flex Clamp

Specifications

Capacity:	21 cu-in
Color:	Silver
Country of Origin:	US
Dimensions:	4 in H x 4 in W x 1-1/2 in D
Finish:	Pre-Galvanized
Knockout Size:	1/2 in
Material:	Steel
Number of Knockouts:	11
Shape:	Squared
