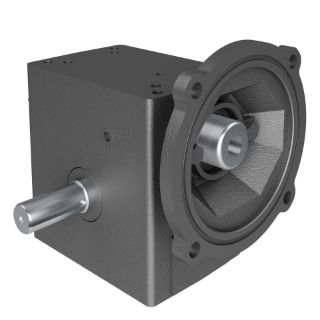

Actual Product May Vary From Image

214L 10/1 B WR 143TC HUB

Name: 214L 10/1 B WR 143TC HUB
SKU: 214L 10/1 B WR 143TC HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-03623 210LPCX Right Angle Single Reduction Style B Worm Gear Reducer, C-Face Quill Input, Shaft Output, 2.5 hp Input, 10:1 Gear, 175 rpm Maximum Output, 828 in-lb Output Torque Rating

Manufacturer part number: 0230-03623

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 210LPCX, 10:1 Gear Ratio, 2.5 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 7/8 in Dia Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 828 in-lb Output Torque, 2.06 in Centre Distance, 3/16 x 3/32 in Input Keyway, 92 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 8-1/2 in W x 6 in H

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	2.06 in
Dimensions:	8-1/2 in W x 6 in H
Efficiency:	92 %
Gear Ratio:	10:1
Horsepower:	2.5 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	7/8 in Dia
Output Type:	Shaft
Series:	210LPCX
Torque Rating:	828 in-lb Output
