2154US RAC

Name: 2154US RAC
Brand: Raco Industries
SKU: 2154US RAC
Availability: OutOfStock

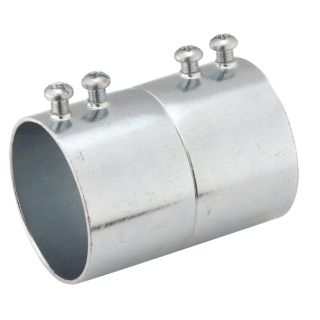

RACO® 2154US Set Screw Coupling, 3-1/2 in, For Use With EMT, IMC and Rigid Conduits, Steel, Electroplated Zinc

Manufacturer: Raco Industries

Manufacturer part number: 2154US

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

RACO®

Description

When you need to couple, connect, fasten, or ground conduit or cables, RACO® fittings are your best answer. Where applicable, RACO® products are engineered in accordance with the standards established by Underwriters' Laboratories (UL). Most products are listed by UL and also certified by the Canadian Standards Association (CSA). Dimensional data listed in this catalog is intended for general reference with broad tolerance limits.

RACO® Set Screw Coupling, 3-1/2 in Size, For Use With: EMT, IMC and Rigid Conduits, Steel, Silver, Electroplated Zinc, 4.28 in OD x 4.5 in L Dimensions

Application

Used in dry locations to couple two ends of EMT conduit and electrical applications

Standards

Features

All steel construction insures mechanical protection for the raceway
Tri-head screws 1/2 to 2 in trade sizes may be installed using a slotted, Phillips or Robertson head screwdriver
2-1/2 to 4 in trade sizes are also UL listed for use on Rigid/IMC conduit, allowing for design and installation flexibility
UPC bar coded fittings are individually polybagged with a pre-printed UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
Concretetight connections when taped
RACO® set screw couplings are suitable for applications above 600 VAC
All components are electroplated zinc for corrosion protection
0.115 in THK wall
1/4-28 UNS thread
Set screw installation

Specifications

Color:	Silver
Country of Origin:	US
Dimensions:	4.28 in OD x 4.5 in L
Finish:	Electroplated Zinc
Material:	Steel
Size:	3-1/2 in
Suitable For Use With:	EMT, IMC and Rigid Conduits
