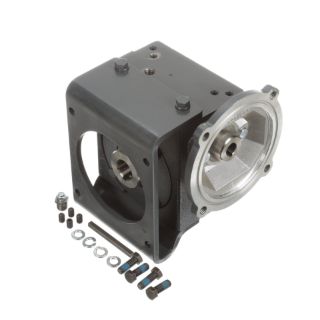

Actual Product May Vary From Image

216 50/1 R WR 143TC 1.250 HUB

Name: 216 50/1 R WR 143TC 1.250 HUB
SKU: 216 50/1 R WR 143TC 1.250 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-03281 210PCX Right Angle Single Reduction Style R Worm Gear Reducer With Side Mounting Flange, C-Face Quill Input, Hollow Bore Output, 0.66 hp Input, 50:1 Gear, 35 rpm Maximum Output, 798 in-lb Output Torque Rating

Manufacturer part number: 0230-03281

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 210PCX, 50:1 Gear Ratio, 0.66 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1-1/4 in Dia Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 798 in-lb Output, 2.06 in Centre Distance, 1/4 x 1/8 in Output Keyway, 67.3 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.06 in
Efficiency:	67.3 %
Gear Ratio:	50:1
Horsepower:	0.66 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	35 rpm
Output Size:	1-1/4 in Dia
Output Type:	Hollow Bore
Series:	210PCX
Torque Rating:	798 in-lb Output
