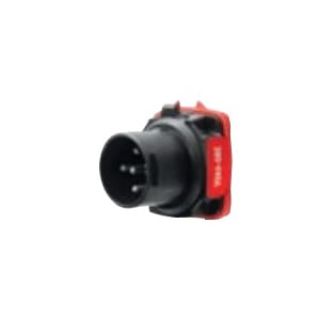

Picture of 22-18165 MEL
Actual Product May Vary From Image

22-18165 MEL

MELTRIC 22-18165 DXN20 Male Hazardous Location Inlet, 120/127/208/220 VAC, 20 A, 1 Poles, Black
Manufacturer: Meltric
Manufacturer part number: 22-18165
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

MELTRIC

Type

Male

Description

DXN Series plugs and receptacles are convenient, lightweight devices that are safe for use in hazardous environments such as refineries or silos where exposure to flammable gas or dust is a concern. The DXN's compact size and durable construction makes them easy to handle and well suited for in-line connections of electrical equipment. The DXN's dead front construction assures electrical safety by preventing user access to live parts. IP66/IP67 ratings are achieved as soon as the plug and receptacle are mated, making them the perfect choice for wet or dusty environments.
MELTRIC Hazardous Location Inlet, Male, Series: DXN20, 120/127/208/220 VAC, 20 A, 1/2 hp, 60 Hz Frequency, 1 Pole, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Black, 2.4 in H x 2.57 in D Dimensions

Application

For zone 1 and 2 (Gas), zones 21 and 22 (Dust) wet or dusty environments

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CSA C22.2 File No. 182.1 | IEC 60309-1 | cCSAus Ex de IIC/Ex tb IIIC/Class I Zone I AEx de IIC/Zone 21 AEx tD | Class I Division 2 Gr A/B/C/D | Class II Division 2 Gr E/F/G/ATEX II 2 G/D/Ex de IIC/Ex tb IIIC

Features

  • Silver nickel contact material provides superior conductivity, durability and corrosion resistance
  • Includes enhanced creepage and clearance distances and specially designed terminals to ensure perfect and permanent clamping
  • Self-extinguishing, non-static, material provides outstanding resistance to mechanical abuse and chemicals
  • When closed, the lid maintains IP66/IP67 protection for the receptacle after removal of the plug
  • Explosionproof flame path dissipates internal pressure created during arcing while also preventing any associated ignition sources from reaching the surrounding atmosphere
  • Explosionproof arc chamber withstands internal pressure due to gas/dust ignited by arcing and isolates it from the outside environment
  • Pushbutton pawl/OFF button provides quick, safe and easy current interruption
  • 1/2 hp at 120 VAC 1-phase horsepower rating

Specifications

Amperage Rating:20 A
Color:Black
Country of Origin:US
Dimensions:2.4 in H x 2.57 in D
Enclosure:IP66/IP67
Frequency Rating:60 Hz
Horsepower:1/2 hp
Material:PBT
Number of Poles:1
Series:DXN20
Temperature Rating:-40 to 140 deg F
Terminal Type:Screw
Voltage Rating:120/127/208/220 VAC
