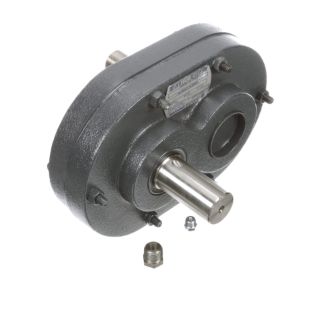

Actual Product May Vary From Image

22 2/1 A S HUB

Name: 22 2/1 A S HUB
SKU: 22 2/1 A S HUB
Price: 1,283.75 USD
Availability: OutOfStock

Hub City® 0220-01503 22 Series Type S Single Reduction Style A Parallel Shaft Gear Drive, Shaft Input, Shaft Output, 17.7 hp, 2:1 Gear, 875 rpm Maximum Output, 1237 in-lb Torque Rating

Manufacturer part number: 0220-01503

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,283.75

Qty:

Product Details

Brand Name

Hub City®

Type

Type S Single Reduction Style A

Description

Parallel shaft gearing utilizes helical or spur gearing with shafts that are parallel and offset. Input connection can be facilitated using couplings, belt drives or C-face quill. Various output configurations are available. These gearboxes are used individually and also in combination with other gearboxes to easily fine tune the ratio to the application requirement.

Hub City® Parallel Shaft Gear Drive, Type S Single Reduction Style A, Series: 22 Series, 2:1 Gear Ratio, 17.7 hp, Shaft Input, Shaft Output, 1 in Dia Input, 1/4 x 1/8 in Input, 1/4 x 1/8 in Output Keyway, 97.5 % Efficiency, Oil Lubrication, Shaft Mounting, Cast Iron, 6-1/4 in L x 8-1/2 in W x 9-1/4 in H Dimensions

Features

Rugged cast iron housing
High strength gearing
Alloy shafting
Three input modes for integrating with hydraulic or electric motors or externally coupled drive sources
Heavy duty industrial seals

Specifications

Country of Origin:	US
Dimensions:	6-1/4 in L x 8-1/2 in W x 9-1/4 in H
Efficiency:	97.5 %
Gear Ratio:	2:1
Horsepower:	17.7 hp
Input Size:	1 in Dia
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 1/4 x 1/8 in Output
Lubrication Type:	Oil
Material:	Cast Iron
Mounting Type:	Shaft
Output Type:	Shaft
Series:	22 Series
