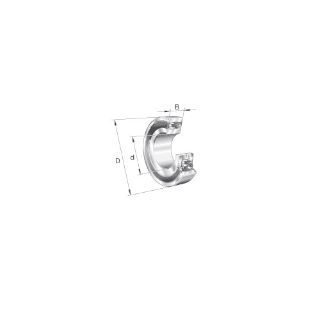

Actual Product May Vary From Image

2201-2RS-TVH FAG

Name: 2201-2RS-TVH FAG
Brand: INA
SKU: 2201-2RS-TVH FAG
Price: 88.41 USD
Availability: OutOfStock

FAG 2201-2RS-TVH 22..-2RS Self-Aligning Ball Bearing, 12 mm Dia Bore, 32 mm OD, 2 Rows, 14 mm W, 5700 N Dynamic/1250 N Static/78 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 2201-2RS-TVH

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$88.41

Qty:

Product Details

Brand Name

FAG

Description

FAG Self-Aligning Ball Bearing, Series: 22..-2RS, 12 mm Bore, 32 mm OD, 2 Rows, 14 mm Width, Double Seal Closure, 5700 N Dynamic/1250 N Static/78 N Fatigue Load, Steel Bearing, Buna-N Seal, Polyamide 66 Cage, 14700 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 630

Features

Lip seals on both sides
Solid cage made from glass fiber reinforced polyamide 66

Specifications

Bearing Material:	Steel
Bore Diameter:	12 mm
Cage Material:	Polyamide 66
Closure Type:	Double Seal
Finish:	Uncoated
Load Capacity:	5700 N Dynamic/1250 N Static/78 N Fatigue
Maximum Speed:	14700 rpm
Number of Rows:	2
Outside Diameter:	32 mm
Seal Material:	Buna-N
Series:	22..-2RS
Temperature Rating:	120 deg C
Width:	14 mm
