2203-2RS-TVH FAG

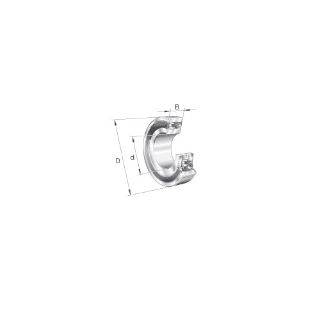

FAG 2203-2RS-TVH 22..-2RS Self-Aligning Ball Bearing, 17 mm Dia Bore, 40 mm OD, 2 Rows, 16 mm W, 8100 N Dynamic/2000 N Static/124 N Fatigue Load
Manufacturer: INA
Manufacturer part number: 2203-2RS-TVH
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$93.67

Product Details

Brand Name

FAG

Description

FAG Self-Aligning Ball Bearing, Series: 22..-2RS, 17 mm Bore, 40 mm OD, 2 Rows, 16 mm Width, Double Seal Closure, 8100 N Dynamic/2000 N Static/124 N Fatigue Load, Steel Bearing, Buna-N Seal, Polyamide 66 Cage, 11300 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 630

Features

  • Lip seals on both sides
  • Solid cage made from glass fiber reinforced polyamide 66

Specifications

Bearing Material:Steel
Bore Diameter:17 mm
Cage Material:Polyamide 66
Closure Type:Double Seal
Finish:Uncoated
Load Capacity:8100 N Dynamic/2000 N Static/124 N Fatigue
Maximum Speed:11300 rpm
Number of Rows:2
Outside Diameter:40 mm
Seal Material:Buna-N
Series:22..-2RS
Temperature Rating:120 deg C
Width:16 mm
