Actual Product May Vary From Image

2204U78 RND

Name: 2204U78 RND
Brand: Rexnord
SKU: 2204U78 RND
Availability: OutOfStock

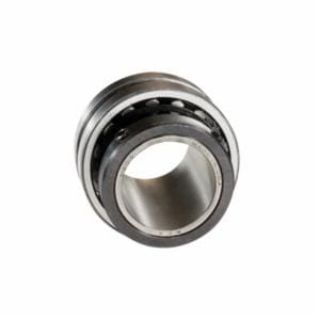

Rex® 2204U78 2000 Normal Duty Unmounted Spherical Roller Insert Bearing, 2-1/4 in Dia Bore, 3-15/16 in OD, 1.66 in W, 36370 lb Dynamic/44400 lb Static Load

Manufacturer: Rexnord

Manufacturer part number: 2204U78

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rex®

Type

Normal Duty Unmounted

Description

Rex® Spherical Roller Insert Bearing, Normal Duty Unmounted, Series: 2000, 2-1/4 in Bore Dia, 3-15/16 in Outside Dia, 1.66 in Width, 36370 lb Dynamic/44400 lb Static Load, 225 deg F

Application

Aggregates, Air Handling, Construction, Forest Products, Mining, Steel and Package Handling Industries

Standards

ANSI | ABMA STD 9-1990

Features

Precision ground and super finished raceways
Hardened single setscrew spring locking collar
Self-aligning
Easy bearing clearance adjustment
Replaceable bearing
Shaft ready
Super-finished raceways
Rugged housing
Simplest installation and most economical
Bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting

Includes

Steel Retainers

Specifications

Bore Diameter:	2-1/4 in
Country of Origin:	US
Load Capacity:	36370 lb Dynamic/44400 lb Static
Outside Diameter:	3-15/16 in
Series:	2000
Temperature Rating:	225 deg F
Width:	1.66 in
