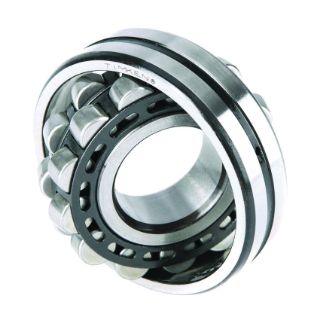

Actual Product May Vary From Image

22206EJW33C3 TKN

Name: 22206EJW33C3 TKN
Brand: Timken
SKU: 22206EJW33C3 TKN
Availability: OutOfStock

Timken 22206EJW33C3 Spherical Roller Bearings Steel Cage Straight Bore | Bore 30.000 mm 1.1811 in | OD 62.000 mm 2.4409 in | Width 20.000 mm 0.7874 in

Manufacturer: Timken

Manufacturer part number: 22206EJW33C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken® high performance spherical roller bearings feature industry-leading load ratings and thermal reference speeds. With one of the broadest offerings in the industry, Timken® high performance spherical roller bearings handle high radial loads, as well as axial loads in both directions. Up to 2.5° of shaft misalignment can be accommodated.

Features

Enhanced surface finishes | Optimized internal geometry | Industry-leading load ratings | Nitride hardened steel cage with face slots |(W33) Standard lubrication holes and groove in outer ring

Specifications

Bearing Material:	Steel
Bearing Type:	Spherical Roller Bearings
Bore Type:	Straight
Cage (Retainer) Type:	Design Style - EJ
Cage Material:	Steel Cage
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	15200
Fillet Radius - Inch:	0.04
Fillet Radius - Millimeter:	1
Inner Race Width (in):	0.7874
Inner Race Width (mm):	20
Internal Clearance:	C3
Load Rating UOM:	LB
Lubrication Hole/Groove:	yes
Manufacturer Produt Page Link:	https://www.timken.com/products/timken-engineered-bearings/spherical/
Material - Rolling Elements:	Roller
Maximum Operating RPM (Grease):	7800
Maximum Operating RPM (Oil):	9700
Outer Diameter (in):	2.441
Outer Diameter (mm):	62
Outer Diameter Type:	Straight
Outer Race Width (in):	0.7874
Outer Race Width (mm):	20
Overall Width (in):	0.787
Overall Width (mm):	20
Precision class:	P0
Relubricatable:	yes
Rolling Element:	Spherical
Row Type:	Double
Self Aligning:	Yes
Series:	222
Shaft Size (in):	1.181
Shaft Size (mm):	30
Snap Ring:	no
Static Load Rating:	67400
