22210LBKC0 LBB

Name: 22210LBKC0 LBB
Brand: Rexnord
SKU: 22210LBKC0 LBB
Availability: OutOfStock

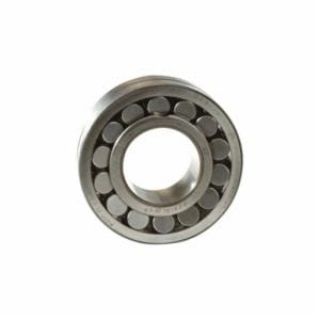

Link-Belt® 22210LBKC0 22200 Tapered Unmounted Spherical Roller Bearing, 50 mm Dia Bore, 90 mm OD, 2 Rows, 23 mm W, 97900 N Dynamic/113000 N Static Load

Manufacturer: Rexnord

Manufacturer part number: 22210LBKC0

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Tapered Unmounted

Description

Link-Belt® Spherical Roller Bearing, Tapered Unmounted, Series: 22200, 50 mm Bore Dia, 90 mm Outside Dia, 2 Rows, 23 mm W, Open Closure, 97900 N Dynamic/113000 N Static, Brass Cage, 5000 rpm Grease/5500 rpm Oil Maximum, 212 deg F, Uncoated

Application

Earth-Moving Equipment, Vibrating Screens, Steel Mill, Paper Mill Equipment, Embossing Rolls, Printing Presses, Torque Converters and Industries

Standards

ANSI | ABMA STD 11-1990

Features

Positive roller guidance is provided from rugged retainer design
Large high-capacity rollers for extended bearing life
Raceway curvatures
Micro finished raceways assure smooth operation
Maximum lubrication, self-aligning
C0 normal clearance
Adapter mounted
22210LB bearing number

Specifications

Bore Diameter:	50 mm
Cage Material:	Brass
Closure Type:	Open
Country of Origin:	JP
Finish:	Uncoated
Load Capacity:	97900 N Dynamic/113000 N Static
Maximum Speed:	5000 rpm Grease/5500 rpm Oil
Number of Rows:	2
Outside Diameter:	90 mm
Series:	22200
Temperature Rating:	212 deg F
Width:	23 mm
