22213-E1-XL-C3 FAG

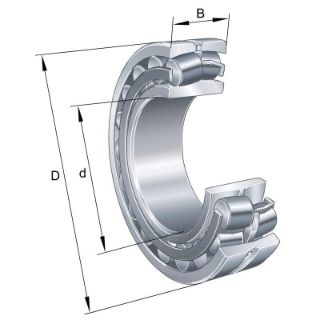

FAG 22213-E1-XL-C3 222-E1 Spherical Roller Bearing, 65 mm Dia Bore, 120 mm OD, 2 Rows, 31 mm W, 210000 N Load
Manufacturer: INA
Manufacturer part number: 22213-E1-XL-C3
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
4 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$282.23

Product Details

Brand Name

FAG

Description

Spherical roller bearings are designed for systems in which high loads must be supported and shaft flexing and misalignments compensated. They deliver extremely high performance and are designed to carry extreme loads. The decades of experience our engineers have gathered combined with innovative ideas improve our spherical roller bearings even further. As a matter of fact, our quest for perfection in development and production ensures optimum kinematics and low wear, which increases the service life even more. And that comes at a low-maintenance outlay and minimum maintenance costs.
FAG Spherical Roller Bearing, Series: 222-E1, 65 mm Bore, 120 mm OD, 2 Rows, 31 mm Width, Open Closure, 210000 N Load, Sheet Steel Cage, 7000 rpm Maximum, -30 to 200 deg C

Application

Mining Machinery, Conveyor Belts, Crushers, Vibrating Screens, Vertical Mills, Roller Presses, Continuous Casting Plant, Passenger Elevators, Marine Propulsion Systems, Dryer Rolls and Calendars

Standards

DIN 635-2

Features

  • Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two-rows of rollers
  • The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments
  • 202000 N dynamic/210000 N static load

Specifications

Bore Diameter:65 mm
Cage Material:Sheet Steel
Closure Type:Open
Load Capacity:210000 N
Maximum Speed:7000 rpm
Number of Rows:2
Outside Diameter:120 mm
Series:222-E1
Temperature Rating:-30 to 200 deg C
Width:31 mm
