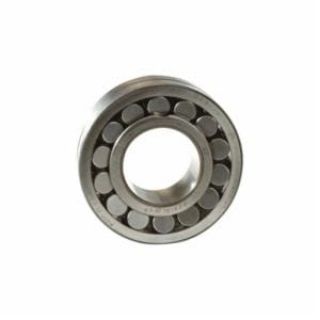

Actual Product May Vary From Image

22215LBKMC3 LBB

Name: 22215LBKMC3 LBB
Brand: Rexnord
SKU: 22215LBKMC3 LBB
Availability: OutOfStock

Link-Belt® 22215LBKMC3 22200 Tapered Unmounted Spherical Roller Bearing, 75 mm Dia Bore, 130 mm OD, 31 mm W, 185000 N Dynamic/236000 N Static Load

Manufacturer: Rexnord

Manufacturer part number: 22215LBKMC3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Tapered Unmounted

Description

Link-Belt® Spherical Roller Bearing, Tapered Unmounted, Series: 22200, 75 mm Bore Dia, 130 mm Outside Dia, 31 mm Width, 185000 N Dynamic/236000 N Static Load, Brass Cage, 3400 rpm Grease/3700 rpm Oil Maximum

Application

Earth-Moving Equipment, Vibrating Screens, Steel Mill, Paper Mill Equipment, Embossing Rolls, Printing Presses, Torque Converters and Industries

Standards

ANSI | ABMA STD 11-1990

Features

Roller riding retainers
Self-aligning, high capacity
Adapter mounted
C3 greater than normal clearance
22215LB bearing number

Specifications

Bore Diameter:	75 mm
Cage Material:	Brass
Load Capacity:	185000 N Dynamic/236000 N Static
Maximum Speed:	3400 rpm Grease/3700 rpm Oil
Outside Diameter:	130 mm
Series:	22200
Width:	31 mm
